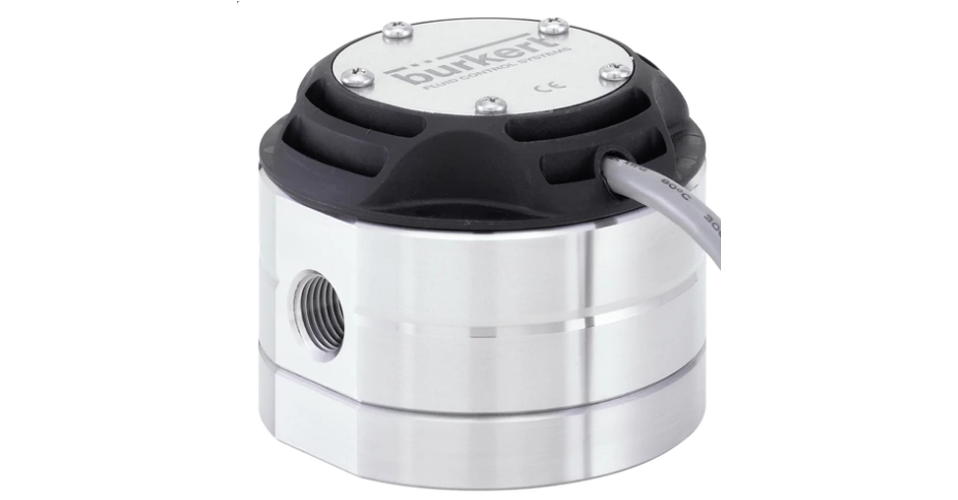

Burkert : Type 8077 - Oval rotor low flow sensor

   Type 8077 - Oval rotor low flow sensor This sensor is specially designed for measurement or batch control of highly viscous fluids like glue, honey or oil. It allows an easy connection to transmitters like types 8025 and 8619 for more functionality. The design of this low flow sensor is based on the oval rotor principle. This has proven to be a reliable and highly accurate volumetric method of measuring flow. Exceptional repeatability and high accuracy over a wide range of viscosities and flowrates are features of this design. The low pressure drop and high pressure rating make it suitable for gravity and pump (in-line) applications and many others. All sensors provide Open Collector NPN frequency output and frequency output on Reed contact via 1-meter 5-wire cable.

   Description Burkert Type 8077 - Oval rotor low flow sensor

■ For highly viscous fluids
■ Value indication, monitoring, transmitting, On/Off control and batch control in combination with different transmitters
