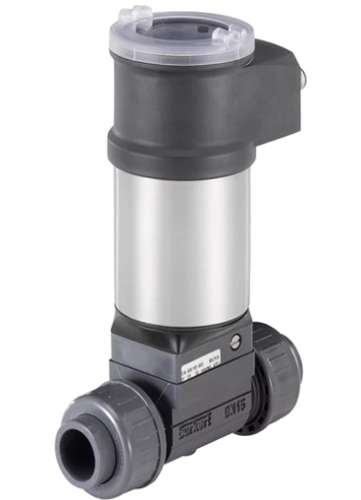

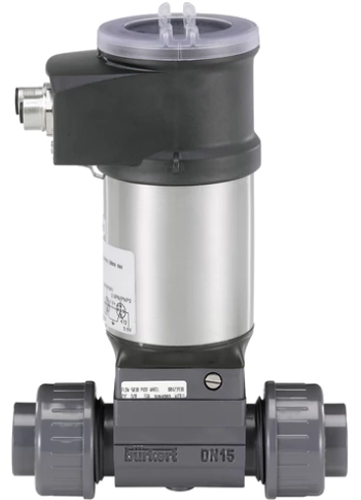

Burkert : Type 8036 - INLINE Flowmeter with paddle wheel, ELEMENT design

   Burkert Type 8036 - The flowmeter Type 8036 is a compact device, specially designed for measuring the flow rate in solid-free liquids, in a variety of applications (water, waste water monitoring, chemical processing, etc.). Type 8036 is available with: - 2 configurable outputs: one transistor output (NPN) and one 4...20 mA current output (2-wire) - 3 configurable outputs: two transistor outputs (NPN/PNP) and one 4...20 mA current output (2-wire) - 4 configurable outputs: two transistor outputs (NPN/PNP) and two 4...20 mA current outputs (3-wire). Type 8036 converts the measured signal, displays different values in different units (if display/configuration module mounted) and computes the output signals, which are provided via one or two M12 fixed connectors. Thanks to 1 or 2 transistor outputs, the flowmeter can be used to switch a solenoid valve, activate an alarm and, thanks to 1 or 2 current outputs, establish one or two control loops.

   Description Burkert Type 8036 - INLINE Flowmeter with paddle wheel, ELEMENT design

■ Size of measurement pipes: DN06 to DN65
■ Configurable outputs: one or two transistor output(s) and one or two 4...20 mA current output(s)
■ Removable backlit display/configuration module for indication of flow rate and volume with two flow totalizers
■ Automatic calibration using Teach-In, all outputs can be checked without the need for actual flow
