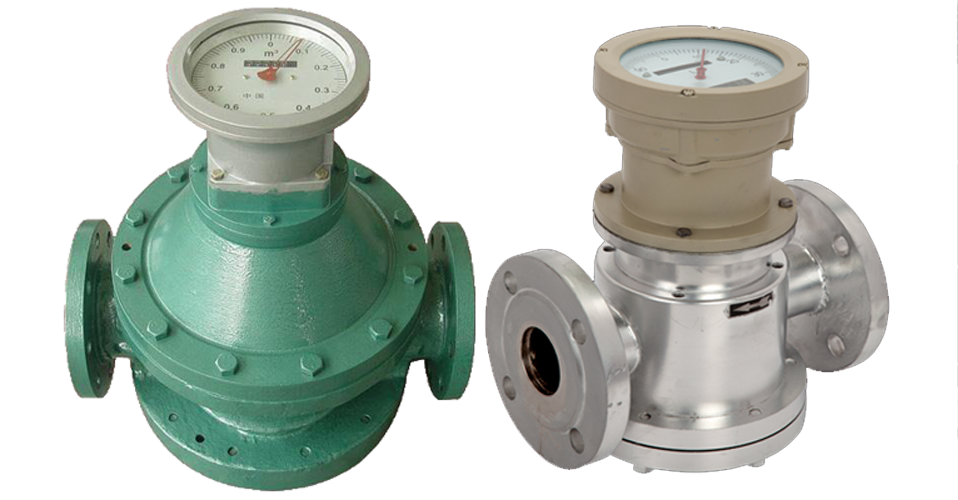

SURE : Oval Gear Flow Meter

Fluid enters inlet port and then passes through the metering chamber. Inside the chamber, fluid forces the internal gears to rotate before exiting through the outlet port. Each rotation of the gears displaces a specific volume of fluid. As the gears rotate, a magnet on each end of the gear passes a reed switch in the top mounted register?s circuit board.

■ Mechanical display type, Digital display type, available
■ High temperature & High viscosity type, available
■ Size from DN10?DN200;
■ Accuracy of ?0.5%, ?0.2%;
