LEEG > Pressure Transmitter > Flush Diaphragm

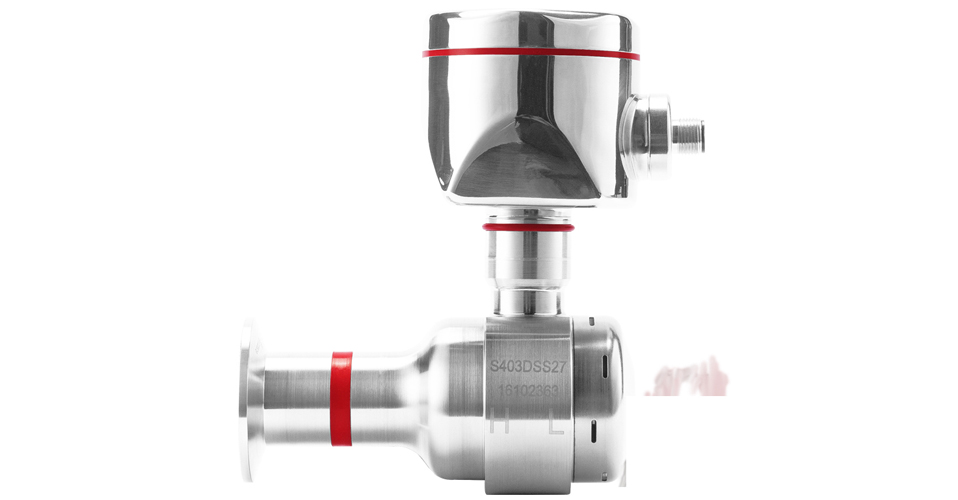

LEEG : SMP858-TSF-D Flush diaphragm gauge pressure transmitter


   LEEG : SMP858-TSF-D Flush diaphragm gauge pressure transmitter Hygienic pressure transmitter, designed for food and pharmaceutical industry, is suitable for CIP/SIP cleaning and sterilization. Smart compact design, the wetted parts is made of high quality stainless steel 316L and integral welding, roughness≤0.4um, filling fluid with hygiene standard in line with FDA certification, variety of international standard process connections are available.

   Advantage : LEEG - SMP858-TSF-D Flush diaphragm gauge pressure transmitter
■ High-performance monosilicon pressure sensor technology.
■ Double-diaphragm anti-condensation structure is more suitable for all kinds of humid working conditions.
■ 350 rotated LCD display meets the observation requirements of different installation.
■ Fully stainless steel design, in line with the hygiene standards.
■ Utilizing a built-in capillary oil sealing method instead of an external oil filling method results in a more reliable and aesthetic product.

   Features : LEEG - SMP858-TSF-D Flush diaphragm gauge pressure transmitter
■ Pressure type: gauge pressure
■ Measuring range: 10kPa-3MPa
■ Output signal: 4-20mA, 4-20mA+HART
■ Reference accuracy: 0.2% URL, 0.5% URL
■ Process connection: Tri-Clamp 1-1/2", Tri-Clamp 2", DIN32676 DN32, ISO2852, DRD ...
■ Approvals: CE, 3A, Ex-proof certificate

   Industry Application : LEEG - SMP858-TSF-D Flush diaphragm gauge pressure transmitter
■ Pharmacy industry, Food & milk, Beer & Beverage
