Burkert > Type 8619

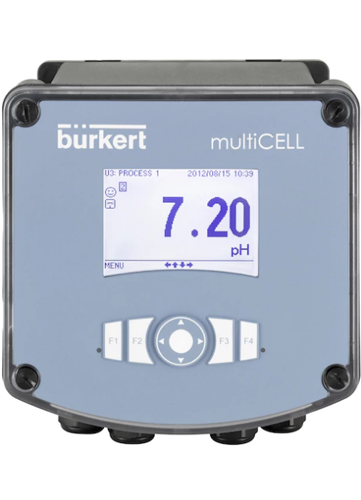

Burkert : Type 8619 - MultiCELL - Multi-channel, Multi-function transmitter /controller

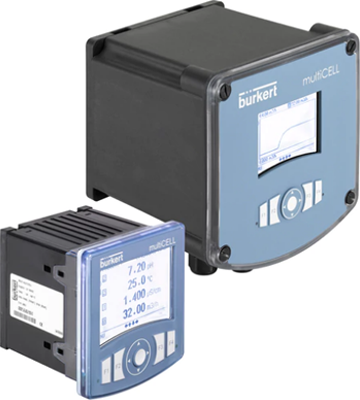

   Burkert : Type 8619 - MultiCELL - Multi-channel, Multi-function transmitter /controller The 8619 multichannel multifunction transmitter/controller, available in two housing variants for panel or wall mounting, is a microprocessor transmitter/controller for connection of sensors which deliver raw signals for pH, ORP, conductivity and flow via pulses or sensors (like pressure, level, chlorine…) which delivers analogue signals(0…20 mA, 4…20 mA, 0…2 V, 0…5 V, 0…10 V). Type 8619 is the ideal device for measurement and control and as well dosing processes e.g. in applications of water treatment plants (like boiler, cooling tower or reverse osmosis systems) and food and pharma plants. Modularity in hardware and software offers high flexibility for adjusting it to the applications resulting in having a very good price to functionality relation. Sophisticated electronics and state of the art control algorithms ensure that optimum process control is maintained at all times with minimal operator intervention and achieving highest quality. Thanks to full support of the Modbus TCP, the 8619 can be integrated into most Industrial Ethernet environments. Therefore all important process values like measurement data, process diagnostics or device status can be easily integrated into the automation system. (Support for EtherNet/IP and PROFINET is planned for the near future)

   Description Burkert Type 8619 - MultiCELL - Multi-channel, Multi-function transmitter /controller

■ Compatible with most common flow, pH/ORP, chlorine and conductivity sensors

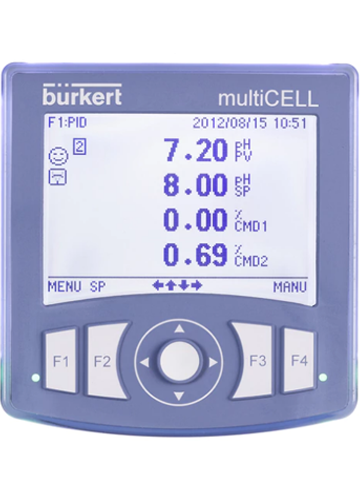

■ Simple, intuitive user interface supported by a large adjustable backlit display (4 user defined views)
■ Hardware extension possibilities (up to 6 free slots)
■ Industrial Ethernet option available
■ Functionality extendable by software options
